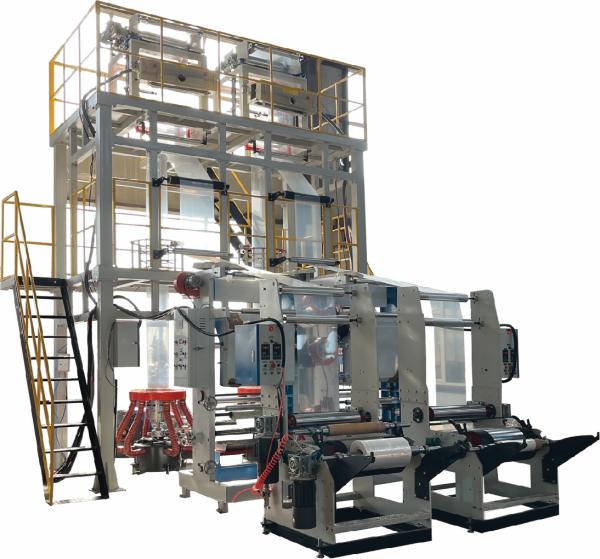

Single Screw Double-head Film Blowing Machine
Features
1.Single Screw Double-head Film Blowing Machine is an extruder equipped with two heads, two sets of air rings and traction device.
2.The barrel and screw of the single screw film blowing machine are made of high-quality alloy steel through nitriding and precision machining.
3.double die head film blowing machine increases throughput and saves energy.
4.The head of the otary die head film blowing machine rotates to promote the flatness of the film.
Specification
MODEL | SJM-Z45-650 | SJM-Z50-850 | SJM-Z55-1100 | SJM-Z65-1400 | |
BASIC PARAMETER | Suitable materials | HDPE,LDPE,LLDPE,MLLDPE | |||
Film width | 300mm-500mm | 400mm-700mm | 600mm-1000mm | 1000mm-1300mm | |
Film thickness | HD；0.008mm-0.05mm;LD:0.02-0.10mm | ||||
Max output | 35-60kg/h | 40-70kg/h | 60-100kg/h | 70-120kg/h | |
Extruder | Screw diameter | Φ45 | Φ50 | Φ55 | Φ65 |
Barrel outside diameter | Φ110 | Φ110 | Φ120 | Φ150 | |
L/D | 30:1 or 32:1 | ||||
Main motor power | 18.5KW | 22KW | 30KW | 37KW | |
Gear box type | 146 | 173 | 180 | 225 | |
Die head diameter | HDφ50m LDΦ120mm | HDΦ60mm LDΦ160mm | HDΦ80mm LDΦ200mm | HDΦ100mm LDΦ250mm | |
Air ring blower | 4KW | 4KW | 5.5KW | 7.5KW | |
Filter type | Standard screw control or Manual filter screen changer | ||||
Take up unit | Roller width | 650mm | 850mm | 1100mm | 1400mm |
Take-up speed | 5-100m/min | 5-100m/min | 5-100m/min | 5-100m/min | |
Take-up motor | 1.5kw | 1.5kw | 1.5kw | 2.2kw | |
Rotary type | Rotary die head | Rotary die head | Rotary die head | Rotary die head | |
Winder unit | Winder type | automatic back to back winder /single surface friction winder/Central winder | |||
Winding motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |
Winding speed | 5-100m/min | 5-100m/min | 5-100m/min | 5-100m/min | |
Control unit | Electrical part | ABB/Schneider/Siemens | |||
inverter | ABB/AILAND/EURA/Yaskawa/Inovance/Slanvert/Delta (according to customer requirements) | ||||
Product Description
Single Screw Double-head Film Blowing Machine has the advantage of supplying large supermarket vest bag flat pocket film blowing. Its appearance is smooth and bright, which is better than the national quality standard. The produced film can be directly used for printing, with good color and high flatness. Can save time and labor cost.
Dual-Lip Air Ring film blowing machine is suitable for the production of high-quality garbage bags. With the improvement of living standards and industrial technology, the requirements for garbage bags are gradually increasing. Nowadays, more and more manufacturers choose high-quality garbage bags produced by this machine. Garbage bag film, double air duct air ring can better cool the film, and the quality and output of the film are getting higher and higher.
The double die head film blowing machine has two sets of die heads, which extrude the film at the same time, with high output, fast speed and neat winding.
